18 Jan Nitogen Gas Boosting – Water Mist Systems
The Critical Role of Nitrogen Gas Boosting in Water Mist Fire Systems
Water mist fire suppression systems are recognised worldwide for their ability to control and extinguish fires using minimal water, making them ideal for protecting high-value and sensitive environments. But their effectiveness goes beyond water alone.
Behind every successful discharge is a carefully controlled—and often unseen—force: nitrogen gas boosting.
Without properly pressurised nitrogen, a water mist system cannot perform as designed, putting lives, assets, and regulatory compliance at risk.
High-Pressure Water Mist Systems
High-pressure water mist systems operate at pressures of 200bar (2900psi), delivering exceptional fire suppression performance.
These systems produce droplets averaging 100–200 microns in diameter, making them highly effective for a wide range of applications, including Class A fire hazards.
High-pressure water mist systems offer flexible deployment options. They can be installed as an open-head deluge system for broad-area coverage or as a closed-head system designed to protect a specific area. In many cases, they can replace traditional sprinkler systems, providing equivalent protection while using significantly less water.
Specialised Systems for Commercial Kitchens
A unique adaptation of this technology is the water mist system designed specifically for commercial kitchens. Unlike conventional wet chemical systems, these water mist setups suppress kitchen fires efficiently without creating a messy clean-up, while meeting strict safety standards. They are compliant with AS 4587 and LPCB approved for kitchen exhaust hood applications, offering a practical and high-performing solution for commercial food environments.
Water mist technology is a modern, efficient, and versatile fire protection solution, combining minimal water usage with maximum safety—making it the smart choice for both sensitive facilities and demanding commercial applications.
Why Nitrogen Is the Preferred Boosting Gas
Nitrogen is selected for water mist systems because of its unique properties:
• Inert and non-combustible, eliminating fire risk
• Moisture-free, preventing corrosion within pipework and valves
• Stable at high pressure, ensuring predictable system behaviour
• Independent of electrical power, allowing operation during blackouts
These characteristics make nitrogen both a safe and highly reliable energy source for critical fire suppression systems.
The Hidden Risk of Pressure Loss
Nitrogen cylinders typically operate at pressures of 200–300 bar. Over time, pressure can be lost due to:
- Temperature fluctuations
- Valve seal degradation
- Micro-leaks or fitting fatigue
- Infrequent inspection and servicing
Even a minor pressure drop can result in poor atomisation, larger water droplets, delayed activation, or incomplete suppression — severely compromising system performance during an emergency.
Why Nitrogen Refilling and Cylinder Testing Are Essential
Nitrogen cylinders are classified as pressure vessels and must be regularly tested, inspected, and refilled in accordance with Australian Standards and regulatory requirements.
Proper testing and refilling ensure:
- Cylinder structural integrity
- Safe pressure retention
- Compliance with fire safety and insurance obligations
- Full system readiness when required
Failure to maintain gas cylinders can result in system failure, non-compliance notices, or costly operational downtime.
Is Your Water Mist System Ready to Perform

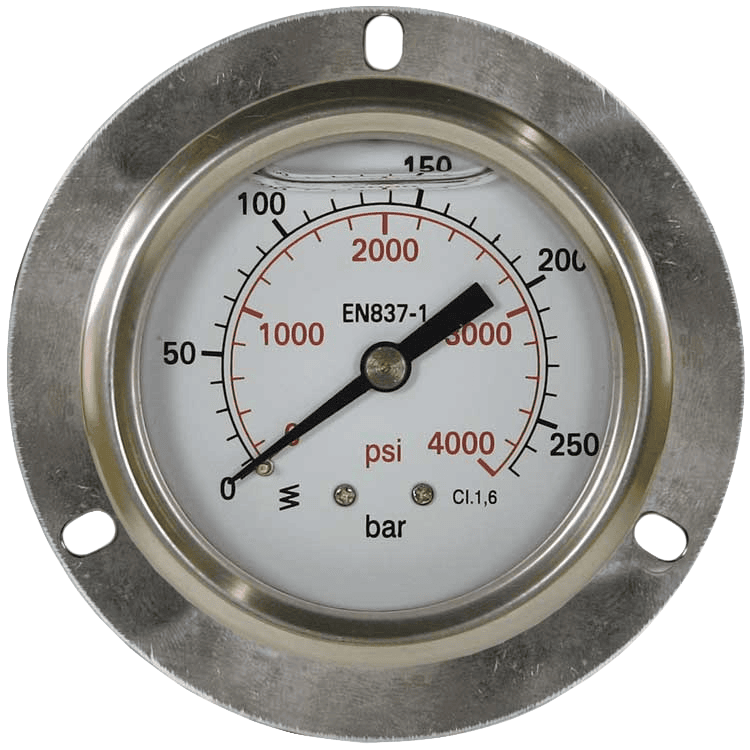

If pressure gauges are falling into the low range, inspections are overdue, or cylinder test dates have expired, your fire system may not function when it is needed most.
Routine nitrogen servicing is not optional — it is a critical component of responsible fire protection management.
Fire System Services – Specialists in Nitrogen Gas Refills & Cylinder Testing
Fire System Services provides professional support for water mist fire systems, including:
- 200bar Nitrogen gas refills
- High-pressure gas cylinder testing
- Inspection and compliance services
- Ongoing fire system maintenance and support
Our technicians understand the precision required in gas-boosted fire suppression systems and ensure every cylinder is serviced, tested, and certified to meet operational and regulatory standards.
A water mist system is only as reliable as its nitrogen supply. Don’t allow pressure loss, expired testing, or neglected maintenance to compromise safety.
Contact Fire System Services today to arrange professional nitrogen gas refilling and cylinder testing — and ensure your water mist fire system is ready to perform when it matters most.
