Cabinets

 Introduction

Fire System Services stocks a full range of cabinets and accessories for all of your fire safety and documentation requirements.

Fire System Services supplies a comprehensive range of fire cabinets, fire covers, fire extinguisher stands and fire extinguisher trolley units to help ensure your equipment is easy to identify, protected from the elements and ready to use when you need it the most!

Depending on location and the application there may also be regulatory requirements to ensure protection from the elements, vermin and vandalism.

Our range includes products suitable for domestic, commercial, industrial, mining and marine applications.

Custom products made to your individual specifications are also available.

Our cabinet range includes metal, fibreglass and poly options.

Our covers include light-weight economical covers through to UV stabilised and fire rated materials.

High quality flammable liquid storage cabinets are also available and are manufactured to exceed the requirements of Australian Standard AS1940-2004.

Also Offering a full service from

  • consultancy requirements
  • supply and installation
  • ongoing maintenance services

But that’s not why you should choose us as your fire and safety supplier.

Fire System Services will continue to assist you – long after the sale.

Choose us as your one point of contact for everything you need.

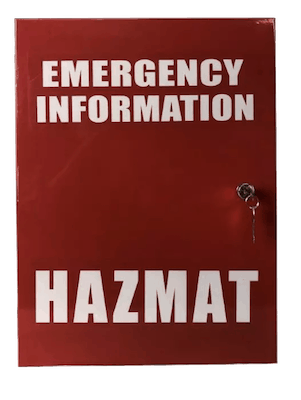

Document Cabinet

Document Cabinets

Document Cabinets

Part No: CMEHBS

Size: Cabinet Metal Hazmat Box Small Standard 435mm H x 325mm W x 100mm D

Emergency Information Cabinets are used to store information for emergency services.

Our range includes two different sizes with four different wording options to meet individual site requirements.

KEY FEATURES:
  • Manufactured using 0.9mm zinc coated sheet to assist in preventing corrosion.
  • Quality powder coated flame red finish with white lettering.
  • Includes 003 type coin lock and two keys.
  • Internal folder retaining cross-member and pre drilled with 4 x mounting holes.

AVAILABLE IN TWO SIZES  WITH FOUR DIFFERENT WORDING OPTIONS

fire extinguisher testing

Product Information

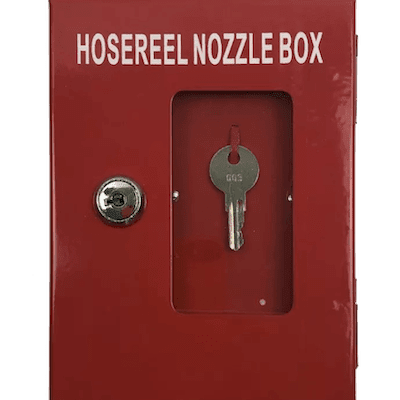

Fire Hose Reel Key Lock Box

Fire Hose Reel Nozzle Lock Box

Cabinet Metal Fire Hose Reel Nozzle Lock Box With 003 Key

Part No: CMNLB

To secure the nozzle on a Fire Hose Reel. Locked with 003 lock. break glass key holder with key in front.

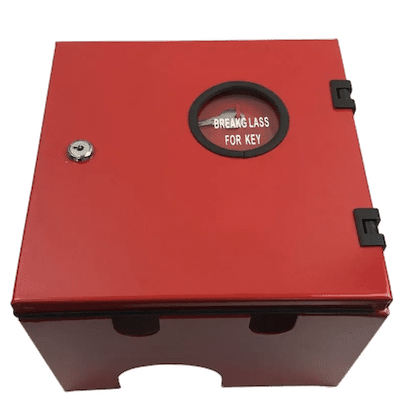

Metal Fire Hose Reel Lock Box

Fire Hose Reel Nozzle Lock Box

Cabinet Metal Fire Hose Reel Valve And Nozzle Lock Box With 003 Key

Part No: CMNVLB

Used to secure the valve and nozzle on a fire hose reel. Protected by 003 lock. Break glass key holder with 003 key included.

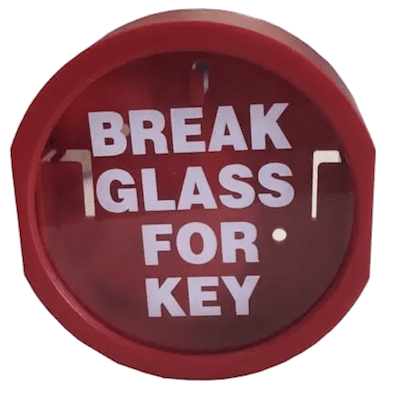

Plastic Break Glass Key Holder

Key Holder Cabinet

Cabinet Break Glass Key Holder PVC 115mm Diameter

Part No: CBGKHP

Plastic Cabinet for Fire 003 Keys

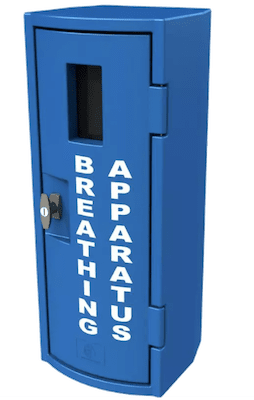

Breathing Apparatus Cabinet

Breathing Apparatus Cabinet

Cabinet Polyethylene Blue Or Green To Suit Breathing Apparatus

Part No: CPBA

Size: 800mm H x 310mm W x 310 D

Available in either blue or green finish.

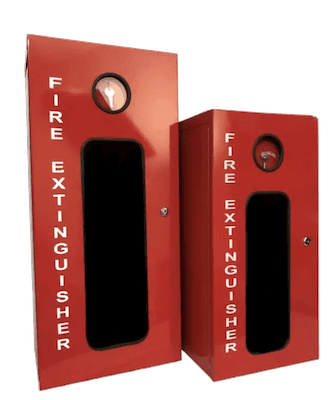

Metal Lockable Fire Extinguisher Cabinets

Lockable Metal Cabinet

Cabinet Metal With Key Holder To Suit 9kg Fire Extinguisher

Part No: CME9A
Size: 710mm H x 320mm W x 220mm D

Metal fire extinguisher cabinet to suit most 9.0kg DCP ABE extinguishers.

Incorporates 003 lock with break-glass key holder and viewing panel.

Also available to suit 4.5kg extinguishers (CME45A) shown together in main image.

fire extinguisher testing

Product Information

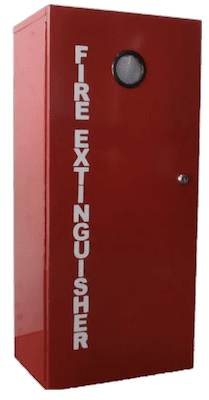

Lockable metal Fire Extinguisher Caninet no window

Lockable Metal Cabinet

Cabinet Metal Lockable With Key Holder To Suit 9kg Fire Extinguisher No View Panel

Part No: CMELLB

High quality Australian made extinguisher cabinet.

KEY FEATURES:
  • Quality Australian made cabinet.
  • 0.9mm zinc annealed sheet metal.
  • UV resistant flame red powder coat finish with white lettering.
  • Full length stainless steel hinge.
  • Complete with 003 lock and break glass key holder.
  • Available in custom colour finishes.

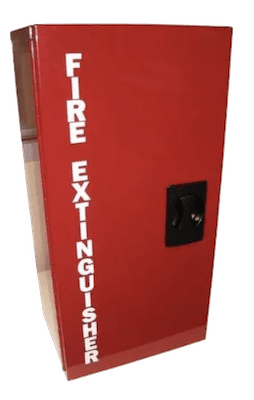

Metal Non Lockable Fire Extinguisher Cabinet

Non Lockable Metal Cabinet

Cabinet Metal Non Lockable To Suit 9kg Fire Extinguisher

Part No: CMENL
Size: 710mm H x 320mm W x 220mm D

High quality Australian made extinguisher cabinet.

KEY FEATURES:
  • Quality Australian made cabinet.
  • 0.9mm zinc annealed sheet metal.
  • UV resistant flame red powder coat finish with white lettering.
  • Full length stainless steel hinge.
  • Complete with flush mount non-locking latch.
  • Available in custom colour finishes.

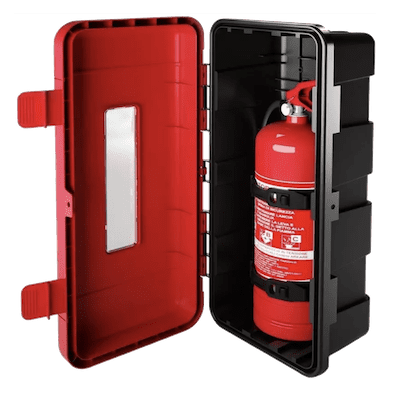

Poly Non Lockable Fire Extinguisher Cabinet

Poly Non Lockable Cabinet

Cabinet Poly Red Resolve Medium To Suit 4.5kg – 9kg Fire Extinguisher With Window

Part No: CP130

Assembled using injection moulded polypropylene, nylon and polycarbonate components ensures the RESOLVE range of cabinets have high resistance to flammability, water & dust ingress, fuel & lubricating oils, UV rays and both high and low temperature extremes.

fire extinguisher testing

Product Information

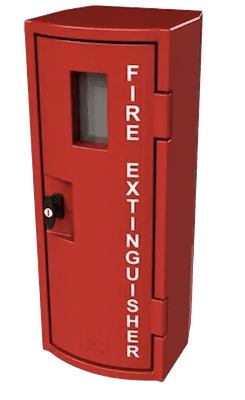

Poly Lockable Fire Extinguisher Cabinet

Poly Lockable Cabinet

Cabinet Polyethylene To Suit 9kg DCP Fire Extinguisher

Part No: CPE9
Size: 800mm H x 310mm W x 310mm D

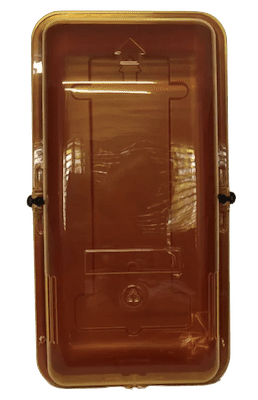

PVC ABS Fire Extinguisher Cabinet

PVC ABS Cabinet

Cabinet PVC ABS To Suit 9kg DCP, 5kg CO2 Or Water Ext

Part No: CPEOL
Size: 835mm H x 370mm W x 245mm D

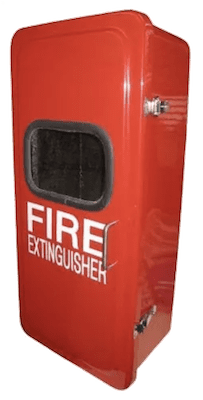

Fiberglass Non Lockable Fire Extinguisher Cabinet

Fiberglass No Lockable Cabinet

Cabinet Fibreglass High Quality To Suit 9.0kg

Part No: CFGEMT30
Size: 850mm H x 390mm W x 260mm D
The CFGEMT30 fire extinguisher cabinet accommodates up to 9.0kg and 5kg fire extinguisher.
These fibreglass enclosures will keep you equipment safe from misuse and can be semi-recessed and wall mounted.
Rugged in design, these fibreglass cabinets will keep your fire extinguisher or other sensitive equipment properly protected from salt air, chemicals, moisture, dust, insects, temperature extremes and other harmful elements.
KEY FEATURES:
  • Twin non locking stainless steel spring latch locks and full-length stainless steel hinge
  • Full rubber seal
  • Acrylic view window
  • Internal dimensions – 770mm H x 320mm W x 230mm D Weight: 9.5kgs
  • Hand layered fibreglass construction with red gel coat finish

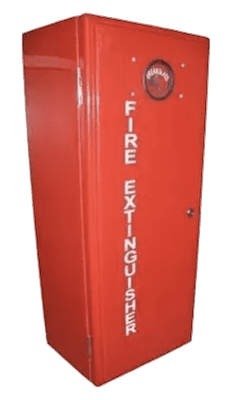

Fiberglass Lockable Fire Extinguisher Cabinet

Fiberglass Lockable Cabinet

Cabinet Fibreglass To Suit 9kg Ext C/W Key Holder

Part No: CFG9LKH
Size: 750mmH x 300mm W x 225mm D
The CFG9LKH cabinet is constructed of Fibreglass and fits up to a 9.0kg Fire Extinguisher.
Has a lockable 003 coin lock and breakglass keyholder.



KEY FEATURES:
  • 003 Coin Lock  and break glass panel
  • Stainless steel hinges
  • Supplied with fire extinguisher label
  • Hand layered fibreglass construction with red gel coat finish

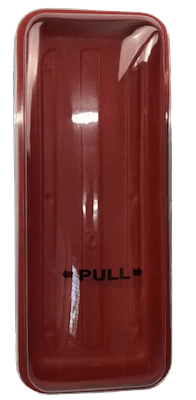

Fireglass Dome Fire Extinguisher Cabinet

Fibreglass Dome Cabinet

Cabinet FG Dome Style Large 5kg CO2 Ext

Part No: CFDLL

Size: 890mm H x 320mm W x 210mm D
Dome Style fibreglass extinguisher cabinet complete.
Red fibreglass back with clear acrylic front.

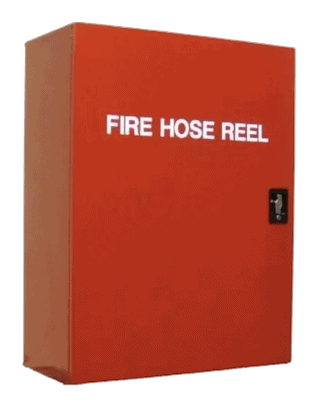

Metal Non Lockable Fire Hose Reel Cabinet

Metal Lockable Cabinet

Cabinet Metal Fire Hose Reel Single Door Wall Mounted

Part No: CMFHRSD

Size: 1000mm H x 760mm W x 370mm D
High quality Australian made fire hose reel cabinet to suit 30m fire hose reel.
PRODUCT DESCRIPTION:

Designed for use with standard size 30m fire hose reels. Ideal for mounting on walls, pillars and stands.

KEY FEATURES:
  • Quality Australian made cabinet
  • 0.9mm zinc annealed sheet metal
  • UV resistant flame red powder coat finish with white lettering
  • Full length stainless steel hinge
  • Complete with flush mount locking 003 latch (also available with non-locking flush mount latch)
  • Available in custom colour finishes

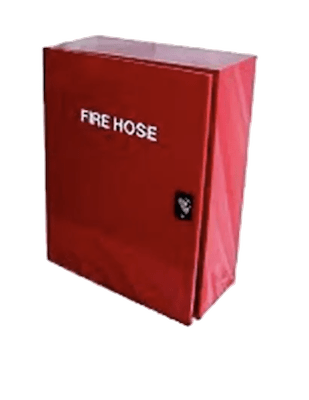

Stainless Steel Fire Hose Reel Cabinet

Stainless Steel Lockable Cabinet

Cabinet Fire Hose Reel Stainless Steel Single Door Wall Mount

Part No: CMFHRSDSS

Size: 1000mm H x 760mm W x 370mm D
High quality Australian made stainless steel fire hose reel cabinet to suit 30m fire hose reel, for use in marine and harsh environments.
PRODUCT DESCRIPTION:

Stainless Steel cabinet designed for use with standard size 30m fire hose reels. Ideal for mounting on walls, pillars and stands and suitable for marine and harsh environments.

KEY FEATURES:
  • Quality Australian made cabinet
  • Stainless Steel construction
  • UV resistant flame red powder coat finish with white lettering
  • Full length stainless steel hinge
  • Complete with flush mount locking 003 latch (also available with non-locking flush mount latch)
  • Available in custom colour finishes.

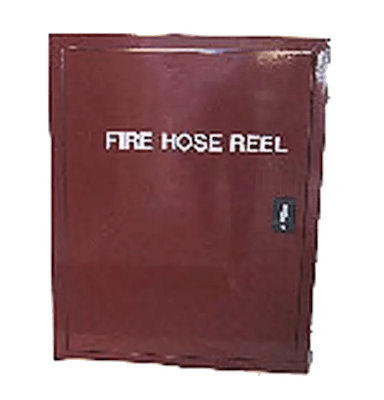

Metal D&S Fire Hose Reel Cabinet

Metal Surround Lockable Cabinet

Cabinet Metal Fire Hose Reel Single Door & Surround Only

Part No: CMFHRDS
High quality Australian made door and surround only to suit 30m fire hose reel.
PRODUCT DESCRIPTION:

Door with surround only designed for cavity mounted standard size 30m fire hose reels.

KEY FEATURES:
  • Quality Australian made door and surround with 100mm return
  • 0.9mm zinc annealed sheet metal
  • UV resistant flame red powder coat finish with white lettering
  • Full length stainless steel hinge
  • Complete with flush mount locking 003 latch (also available with non-locking flush mount latch)
  • Available in custom colour finishes – contact AWFS for custom options and pricing
  • An optional bucket liner is available to suit standard size cavity

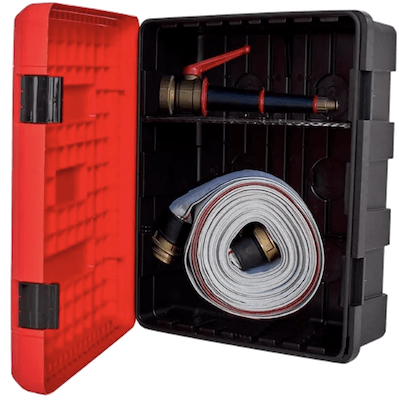

Poly Fire Hose Reel Cabinet

Poly Non Lockable Cabinet

Cabinet Poly Red Resolute IP59K Rated Window Front To Suit Fire Hose

Part No: CPD100FH
The RESOLUTE range of cabinets are designed to meet the  requirements of harsh industrial environments.
Injection moulded Polypropylene construction coupled with high quality nylon and polycarbonate fixtures  provide high resistance to the effects of fuels, oils, UV rays as well as water and dust ingress achieving a IP59K rating.
KEY FEATURES:
  • High resistance to fuels, oils and UV rays
  • Injection Moulded Polypropylene
  • IP59K rating for water / dust ingress
  • Suits fire hose and accessories
  • Non-locking front with windows
  • Internal shelf shown is optional – use part number CPDS

fire extinguisher testing

Product Information

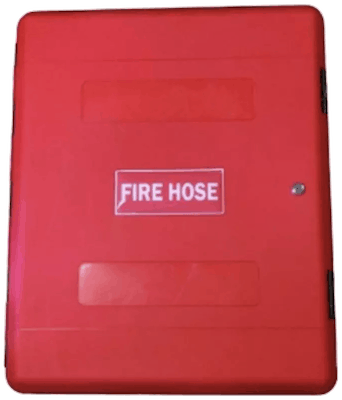

Poly Lockble Cabinet

Poly Lockable Cabinet

Cabinet Poly Red Resolute IP59K Rated Plain Locking Front To Suit Fire Hose

Part No: CPD101FH

The RESOLUTE range of cabinets are designed to meet the  requirements of harsh industrial environments.

Injection moulded Polypropylene construction coupled with high quality nylon and polycarbonate fixtures  provide high resistance to the effects of fuels, oils, UV rays as well as water and dust ingress achieving a IP59K rating.

KEY FEATURES:
  • High resistance to fuels, oils and UV rays
  • Injection Moulded Polypropylene
  • IP59K rating for water / dust ingress
  • Suits fire hose and accessories
  • Plain front with 003 lock
  • Internal shelf shown is optional – use part number CPDS

fire extinguisher testing

Product Information

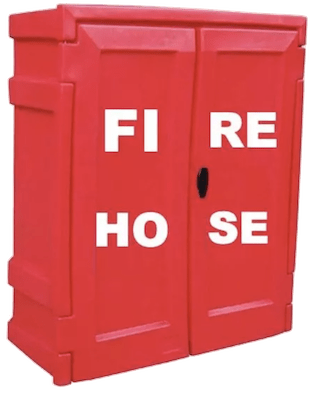

Poly Fire Hose Cabinet

Poly Equipment Cabinet

Cabinet Polyethylene To Fit Fire Hose Plus Equipment

Part No: CPFHDDS
Size: 1220mm H x 1060mm W x 470mm D

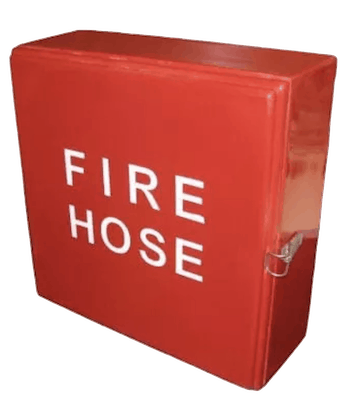

Fireglass Deck Fire Hose Cabinet

Fibreglass Non Lockable Cabinet

Cabinet Fibreglass Deck Fire Hose 573mm H x 573mm W x 215mm D

Part No: CFGMDH
Size: 573mm H x 573mm W x 215mm D
KEY FEATURES:
  • Non locking stainless steel spring latch and stainless steel hinges
  • Supplied with blank front and fire hose label ready to attach if required
  • Can be mounted to achieve either left or right side door opening
  • Hand layered fibreglass construction with red gel coat finish

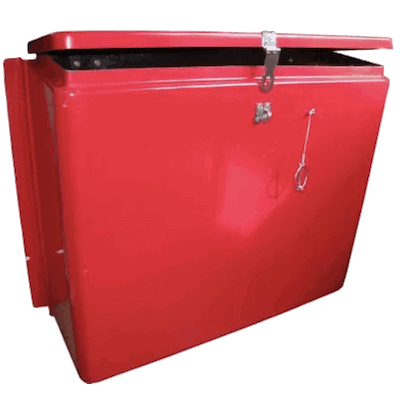

Fireglass Maribe Deck hose Cabinet

Fibreglass Marine Deck Hose Cabinet

Cabinet Fibreglass Marine Deck Hose Top Opening

Part No: CFGDHTO29
Size: 600mm W x 500mm H x 200mm D
KEY FEATURES:
  • Marine style top opening deck fire box
  • Stainless steel hasp and stainless steel hinges
  • Can be mounted to achieve either left or right side door opening
  • Hand layered fibreglass construction with red gel coat finish

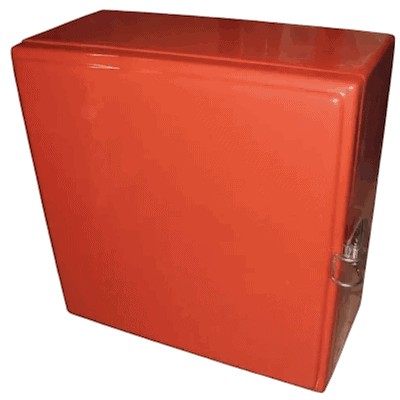

Fibreglass Multipurpose Cabinet

Fibreglass Non Lockable Cabinet

Cabinet Fibreglass Multi Purpose

Part No: CFGEMP
Size: 420mm H x 420mm D x 210mm W
KEY FEATURES:
  • Non locking stainless steel spring latch and stainless steel hinges
  • Can be mounted to achieve either left or right side door opening
  • Hand layered fibreglass construction with red gel coat finish

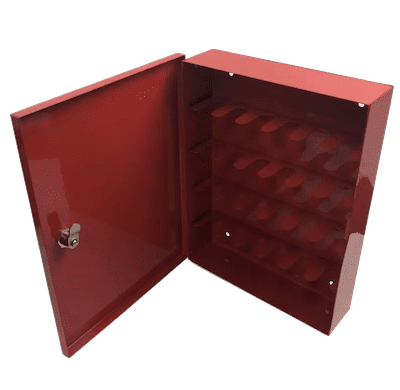

Fire Sprinker Lock Box

Fire Sprinkler Lock Box

Cabinet Metal Sprinkler Spares Hold 24 Pieces

Size: 345mm H x 260mm W x 65mm D

Part No: CMSS

003 locking cabinet supplied with 003 key.

Holds 24 Sprinklers.

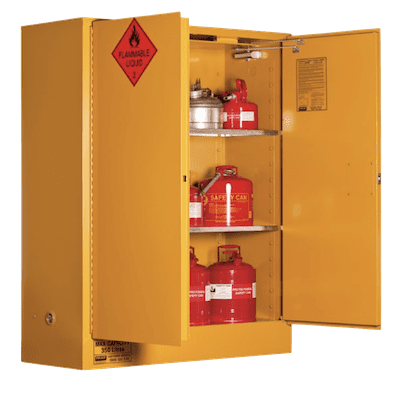

Flammable Liquids Cabinet

Flammable Liquids

Class 3 Flammable Liquid

PRATT Indoor Flammable Liquid Storage Cabinets comply with the Australian Standard AS 1940 “The Storage and Handling of Flammable and Combustible Liquids”.
This range of cabinets is suitable for the storage of flammable or combustible liquids as classified by the United Nations criteria and the ADG Code for Dangerous Goods.
These include flammable liquids such as Paints, Solvents, Petrol, Thinners, Kerosene, Turpentine, White Spirits, Alcohol and Ethanol. Also combustible liquids such as Diesel, Linseed Oil and Pine Oil.

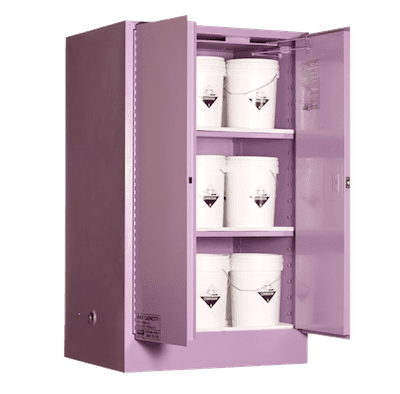

Corrosive Metal Cabinets

Corrosive Metals

Class 8 Corrosive Metal

PRATT Indoor Corrosive Substance Storage Cabinets comply with AS 3780 “The Storage and Handling of Corrosive Substances”.

This range of cabinets is for the storage of Corrosive Substances in liquid or solid as classified by the United Nations criteria and the ADG Code for Dangerous Goods.

These include chemicals such as: Acids, Alkalis, Caustics, Sodium Hydroxide Solution, Hypochlorite Solution etc.

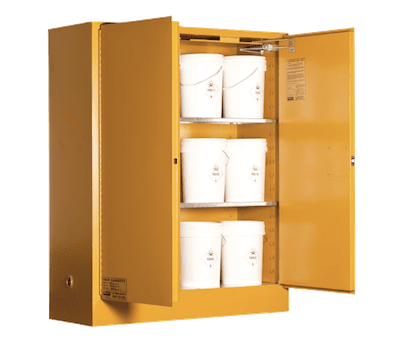

Toxic Storage

Toxic Storage

Class 6 Toxic Substance

PRATT Indoor Toxic Substance Storage Cabinets comply with the Australian & New Zealand Standard AS/NZS 4452 “The Storage and Handling of Toxic Substances”.

This range of cabinets is for the storage of Toxic Substances in liquid or solid as classified by the United Nations criteria and the ADG Code for Dangerous Goods.

These include chemicals such as: Alkaloids, Arsenic, Aniline, Cyanides, Mercury, Phenol – Solid, Trichloroethylene, etc.

Introduction

 Introduction

Fire System Services stocks a full range of cabinets and accessories for all of your fire safety and documentation requirements.

Fire System Services supplies a comprehensive range of fire cabinets, fire covers, fire extinguisher stands and fire extinguisher trolley units to help ensure your equipment is easy to identify, protected from the elements and ready to use when you need it the most!

Depending on location and the application there may also be regulatory requirements to ensure protection from the elements, vermin and vandalism.

Our range includes products suitable for domestic, commercial, industrial, mining and marine applications.

Custom products made to your individual specifications are also available.

Our cabinet range includes metal, fibreglass and poly options.

Our covers include light-weight economical covers through to UV stabilised and fire rated materials.

High quality flammable liquid storage cabinets are also available and are manufactured to exceed the requirements of Australian Standard AS1940-2004.

Also Offering a full service from

  • consultancy requirements
  • supply and installation
  • ongoing maintenance services

But that’s not why you should choose us as your fire and safety supplier.

Fire System Services will continue to assist you – long after the sale.

Choose us as your one point of contact for everything you need.

Document Cabinets
Document Cabinet

Document Cabinets

Document Cabinets

Part No: CMEHBS

Size: Cabinet Metal Hazmat Box Small Standard 435mm H x 325mm W x 100mm D

Emergency Information Cabinets are used to store information for emergency services.

Our range includes two different sizes with four different wording options to meet individual site requirements.

KEY FEATURES:
  • Manufactured using 0.9mm zinc coated sheet to assist in preventing corrosion.
  • Quality powder coated flame red finish with white lettering.
  • Includes 003 type coin lock and two keys.
  • Internal folder retaining cross-member and pre drilled with 4 x mounting holes.

AVAILABLE IN TWO SIZES  WITH FOUR DIFFERENT WORDING OPTIONS

fire extinguisher testing

Product Information

Key Lock Boxes
Fire Hose Reel Key Lock Box

Fire Hose Reel Nozzle Lock Box

Cabinet Metal Fire Hose Reel Nozzle Lock Box With 003 Key

Part No: CMNLB

To secure the nozzle on a Fire Hose Reel. Locked with 003 lock. break glass key holder with key in front.

Metal Fire Hose Reel Lock Box

Fire Hose Reel Nozzle Lock Box

Cabinet Metal Fire Hose Reel Valve And Nozzle Lock Box With 003 Key

Part No: CMNVLB

Used to secure the valve and nozzle on a fire hose reel. Protected by 003 lock. Break glass key holder with 003 key included.

Plastic Break Glass Key Holder

Key Holder Cabinet

Cabinet Break Glass Key Holder PVC 115mm Diameter

Part No: CBGKHP

Plastic Cabinet for Fire 003 Keys

Breathing Apparatus
Breathing Apparatus Cabinet

Breathing Apparatus Cabinet

Cabinet Polyethylene Blue Or Green To Suit Breathing Apparatus

Part No: CPBA

Size: 800mm H x 310mm W x 310 D

Available in either blue or green finish.
Fire Extinguisher
Metal Lockable Fire Extinguisher Cabinets

Lockable Metal Cabinet

Cabinet Metal With Key Holder To Suit 9kg Fire Extinguisher

Part No: CME9A
Size: 710mm H x 320mm W x 220mm D

Metal fire extinguisher cabinet to suit most 9.0kg DCP ABE extinguishers.

Incorporates 003 lock with break-glass key holder and viewing panel.

Also available to suit 4.5kg extinguishers (CME45A) shown together in main image.

fire extinguisher testing

Product Information

Lockable metal Fire Extinguisher Caninet no window

Lockable Metal Cabinet

Cabinet Metal Lockable With Key Holder To Suit 9kg Fire Extinguisher No View Panel

Part No: CMELLB

High quality Australian made extinguisher cabinet.

KEY FEATURES:
  • Quality Australian made cabinet.
  • 0.9mm zinc annealed sheet metal.
  • UV resistant flame red powder coat finish with white lettering.
  • Full length stainless steel hinge.
  • Complete with 003 lock and break glass key holder.
  • Available in custom colour finishes.
Metal Non Lockable Fire Extinguisher Cabinet

Non Lockable Metal Cabinet

Cabinet Metal Non Lockable To Suit 9kg Fire Extinguisher

Part No: CMENL
Size: 710mm H x 320mm W x 220mm D

High quality Australian made extinguisher cabinet.

KEY FEATURES:
  • Quality Australian made cabinet.
  • 0.9mm zinc annealed sheet metal.
  • UV resistant flame red powder coat finish with white lettering.
  • Full length stainless steel hinge.
  • Complete with flush mount non-locking latch.
  • Available in custom colour finishes.
Poly Non Lockable Fire Extinguisher Cabinet

Poly Non Lockable Cabinet

Cabinet Poly Red Resolve Medium To Suit 4.5kg – 9kg Fire Extinguisher With Window

Part No: CP130

Assembled using injection moulded polypropylene, nylon and polycarbonate components ensures the RESOLVE range of cabinets have high resistance to flammability, water & dust ingress, fuel & lubricating oils, UV rays and both high and low temperature extremes.

fire extinguisher testing

Product Information

Poly Lockable Fire Extinguisher Cabinet

Poly Lockable Cabinet

Cabinet Polyethylene To Suit 9kg DCP Fire Extinguisher

Part No: CPE9
Size: 800mm H x 310mm W x 310mm D
PVC ABS Fire Extinguisher Cabinet

PVC ABS Cabinet

Cabinet PVC ABS To Suit 9kg DCP, 5kg CO2 Or Water Ext

Part No: CPEOL
Size: 835mm H x 370mm W x 245mm D
Fiberglass Non Lockable Fire Extinguisher Cabinet

Fiberglass No Lockable Cabinet

Cabinet Fibreglass High Quality To Suit 9.0kg

Part No: CFGEMT30
Size: 850mm H x 390mm W x 260mm D
The CFGEMT30 fire extinguisher cabinet accommodates up to 9.0kg and 5kg fire extinguisher.
These fibreglass enclosures will keep you equipment safe from misuse and can be semi-recessed and wall mounted.
Rugged in design, these fibreglass cabinets will keep your fire extinguisher or other sensitive equipment properly protected from salt air, chemicals, moisture, dust, insects, temperature extremes and other harmful elements.
KEY FEATURES:
  • Twin non locking stainless steel spring latch locks and full-length stainless steel hinge
  • Full rubber seal
  • Acrylic view window
  • Internal dimensions – 770mm H x 320mm W x 230mm D Weight: 9.5kgs
  • Hand layered fibreglass construction with red gel coat finish
Fiberglass Lockable Fire Extinguisher Cabinet

Fiberglass Lockable Cabinet

Cabinet Fibreglass To Suit 9kg Ext C/W Key Holder

Part No: CFG9LKH
Size: 750mmH x 300mm W x 225mm D
The CFG9LKH cabinet is constructed of Fibreglass and fits up to a 9.0kg Fire Extinguisher.
Has a lockable 003 coin lock and breakglass keyholder.



KEY FEATURES:
  • 003 Coin Lock  and break glass panel
  • Stainless steel hinges
  • Supplied with fire extinguisher label
  • Hand layered fibreglass construction with red gel coat finish
Fireglass Dome Fire Extinguisher Cabinet

Fibreglass Dome Cabinet

Cabinet FG Dome Style Large 5kg CO2 Ext

Part No: CFDLL

Size: 890mm H x 320mm W x 210mm D
Dome Style fibreglass extinguisher cabinet complete.
Red fibreglass back with clear acrylic front.
Fire Hose Reel
Metal Non Lockable Fire Hose Reel Cabinet

Metal Lockable Cabinet

Cabinet Metal Fire Hose Reel Single Door Wall Mounted

Part No: CMFHRSD

Size: 1000mm H x 760mm W x 370mm D
High quality Australian made fire hose reel cabinet to suit 30m fire hose reel.
PRODUCT DESCRIPTION:

Designed for use with standard size 30m fire hose reels. Ideal for mounting on walls, pillars and stands.

KEY FEATURES:
  • Quality Australian made cabinet
  • 0.9mm zinc annealed sheet metal
  • UV resistant flame red powder coat finish with white lettering
  • Full length stainless steel hinge
  • Complete with flush mount locking 003 latch (also available with non-locking flush mount latch)
  • Available in custom colour finishes
Stainless Steel Fire Hose Reel Cabinet

Stainless Steel Lockable Cabinet

Cabinet Fire Hose Reel Stainless Steel Single Door Wall Mount

Part No: CMFHRSDSS

Size: 1000mm H x 760mm W x 370mm D
High quality Australian made stainless steel fire hose reel cabinet to suit 30m fire hose reel, for use in marine and harsh environments.
PRODUCT DESCRIPTION:

Stainless Steel cabinet designed for use with standard size 30m fire hose reels. Ideal for mounting on walls, pillars and stands and suitable for marine and harsh environments.

KEY FEATURES:
  • Quality Australian made cabinet
  • Stainless Steel construction
  • UV resistant flame red powder coat finish with white lettering
  • Full length stainless steel hinge
  • Complete with flush mount locking 003 latch (also available with non-locking flush mount latch)
  • Available in custom colour finishes.
Metal D&S Fire Hose Reel Cabinet

Metal Surround Lockable Cabinet

Cabinet Metal Fire Hose Reel Single Door & Surround Only

Part No: CMFHRDS
High quality Australian made door and surround only to suit 30m fire hose reel.
PRODUCT DESCRIPTION:

Door with surround only designed for cavity mounted standard size 30m fire hose reels.

KEY FEATURES:
  • Quality Australian made door and surround with 100mm return
  • 0.9mm zinc annealed sheet metal
  • UV resistant flame red powder coat finish with white lettering
  • Full length stainless steel hinge
  • Complete with flush mount locking 003 latch (also available with non-locking flush mount latch)
  • Available in custom colour finishes – contact AWFS for custom options and pricing
  • An optional bucket liner is available to suit standard size cavity
Poly Fire Hose Reel Cabinet

Poly Non Lockable Cabinet

Cabinet Poly Red Resolute IP59K Rated Window Front To Suit Fire Hose

Part No: CPD100FH
The RESOLUTE range of cabinets are designed to meet the  requirements of harsh industrial environments.
Injection moulded Polypropylene construction coupled with high quality nylon and polycarbonate fixtures  provide high resistance to the effects of fuels, oils, UV rays as well as water and dust ingress achieving a IP59K rating.
KEY FEATURES:
  • High resistance to fuels, oils and UV rays
  • Injection Moulded Polypropylene
  • IP59K rating for water / dust ingress
  • Suits fire hose and accessories
  • Non-locking front with windows
  • Internal shelf shown is optional – use part number CPDS

fire extinguisher testing

Product Information



Poly Lockble Cabinet

Poly Lockable Cabinet

Cabinet Poly Red Resolute IP59K Rated Plain Locking Front To Suit Fire Hose

Part No: CPD101FH

The RESOLUTE range of cabinets are designed to meet the  requirements of harsh industrial environments.

Injection moulded Polypropylene construction coupled with high quality nylon and polycarbonate fixtures  provide high resistance to the effects of fuels, oils, UV rays as well as water and dust ingress achieving a IP59K rating.

KEY FEATURES:
  • High resistance to fuels, oils and UV rays
  • Injection Moulded Polypropylene
  • IP59K rating for water / dust ingress
  • Suits fire hose and accessories
  • Plain front with 003 lock
  • Internal shelf shown is optional – use part number CPDS

fire extinguisher testing

Product Information

Poly Fire Hose Cabinet

Poly Equipment Cabinet

Cabinet Polyethylene To Fit Fire Hose Plus Equipment

Part No: CPFHDDS
Size: 1220mm H x 1060mm W x 470mm D
Fireglass Deck Fire Hose Cabinet

Fibreglass Non Lockable Cabinet

Cabinet Fibreglass Deck Fire Hose 573mm H x 573mm W x 215mm D

Part No: CFGMDH
Size: 573mm H x 573mm W x 215mm D
KEY FEATURES:
  • Non locking stainless steel spring latch and stainless steel hinges
  • Supplied with blank front and fire hose label ready to attach if required
  • Can be mounted to achieve either left or right side door opening
  • Hand layered fibreglass construction with red gel coat finish
Fireglass Maribe Deck hose Cabinet

Fibreglass Marine Deck Hose Cabinet

Cabinet Fibreglass Marine Deck Hose Top Opening

Part No: CFGDHTO29
Size: 600mm W x 500mm H x 200mm D
KEY FEATURES:
  • Marine style top opening deck fire box
  • Stainless steel hasp and stainless steel hinges
  • Can be mounted to achieve either left or right side door opening
  • Hand layered fibreglass construction with red gel coat finish
Fibreglass Multipurpose Cabinet

Fibreglass Non Lockable Cabinet

Cabinet Fibreglass Multi Purpose

Part No: CFGEMP
Size: 420mm H x 420mm D x 210mm W
KEY FEATURES:
  • Non locking stainless steel spring latch and stainless steel hinges
  • Can be mounted to achieve either left or right side door opening
  • Hand layered fibreglass construction with red gel coat finish
Fire Sprinkler System
Fire Sprinker Lock Box

Fire Sprinkler Lock Box

Cabinet Metal Sprinkler Spares Hold 24 Pieces

Size: 345mm H x 260mm W x 65mm D

Part No: CMSS

003 locking cabinet supplied with 003 key.

Holds 24 Sprinklers.

Flammable Liquids
Flammable Liquids Cabinet

Flammable Liquids

Class 3 Flammable Liquid

PRATT Indoor Flammable Liquid Storage Cabinets comply with the Australian Standard AS 1940 “The Storage and Handling of Flammable and Combustible Liquids”.
This range of cabinets is suitable for the storage of flammable or combustible liquids as classified by the United Nations criteria and the ADG Code for Dangerous Goods.
These include flammable liquids such as Paints, Solvents, Petrol, Thinners, Kerosene, Turpentine, White Spirits, Alcohol and Ethanol. Also combustible liquids such as Diesel, Linseed Oil and Pine Oil.
Corrosive Metal Cabinets

Corrosive Metals

Class 8 Corrosive Metal

PRATT Indoor Corrosive Substance Storage Cabinets comply with AS 3780 “The Storage and Handling of Corrosive Substances”.

This range of cabinets is for the storage of Corrosive Substances in liquid or solid as classified by the United Nations criteria and the ADG Code for Dangerous Goods.

These include chemicals such as: Acids, Alkalis, Caustics, Sodium Hydroxide Solution, Hypochlorite Solution etc.

Toxic Storage

Toxic Storage

Class 6 Toxic Substance

PRATT Indoor Toxic Substance Storage Cabinets comply with the Australian & New Zealand Standard AS/NZS 4452 “The Storage and Handling of Toxic Substances”.

This range of cabinets is for the storage of Toxic Substances in liquid or solid as classified by the United Nations criteria and the ADG Code for Dangerous Goods.

These include chemicals such as: Alkaloids, Arsenic, Aniline, Cyanides, Mercury, Phenol – Solid, Trichloroethylene, etc.

Enquire About A Product

For all Fire & Safety products.
CONTACT US NOW
