What Do We Do?
As accredited service providers, Fire System Services technicians are here to perform your Motorsports Auto Racing Racecar Fire Extinguisher and Gas Cylinder Refills and Testing in Adelaide.
We operate and manage an approved gas cylinder test station, number 720.
We are focusing and specialising in all aspects of Racecar Fire Extinguisher and Gas Cylinder Refills and Tests.
With more than 35 years of experience, we can Retest and Refill all types of fire racing bottles from SFI Spec 17.1, DOT class, and AS-certified fire bottles.
When you work with us, you will receive high-quality service and care from our friendly technicians, who assist you with all your needs to help you with your Motorsport Auto Racing Racecar Fire Extinguisher and Gas Cylinders Requirements in Adelaide.
Are all Racecar Fire Bottles the Same?
There are multiple types of fire extinguishers for the auto racing community ranging from Carbon Dioxide, Dry Chemical Powder, and Vaporising Liquids such as Novec to firefighting foams such as AFFF and Cold Fire.
This also includes low-pressure gas cylinders and high-pressure rated gas cylinders.
Manually Mechanically Operated Units / Manually Electric Operated Units / Dual Manually & Electric Operated Units.
- Manually mechanically usually is a pull cable operating system.
- Manually, electricity is typically voltage sent to a solenoid that opens the valve.
- Dual manually electric is an electric solenoid and an N2 gas fire detection tubing that operates the solenoid and valve.
Low-Pressure Cylinders
Our workshop is fully equipped to test and refill low-pressure vehicle fire suppression systems, as well as hand-held portable fire extinguishers.
Low-pressure vehicle fire suppression cylinders typically have a working pressure of 10 bar / 1000 kPa and a lifespan of 10 years.
These cylinders are commonly used for firefighting foam applications and are relatively cost-effective.
They are regarded as disposable cylinders due to their 10-year lifespan from the date of manufacture.
If these units are discharged after five years, they generally should not be refilled, as they cannot undergo a hydrostatic pressure test due to the absence of a test pressure indicator. These cylinders may fail a hydrostatic pressure test at 25 bar / 2500 kPa.
In the Commonwealth of Australia, according to the Gas Cylinder Test Scheme and Australian Standards AS2030 & AS2337, these welded cylinders must undergo pressure testing every five years.
Some fire suppression cylinders are equipped with a single-shot actuator and require replacement parts after each use; this service can only be performed by authorized distributors.
It’s important to note that in accordance with the Gas Cylinder Test Scheme and Australian Standards AS2337 & AS2030, all fire extinguishers must undergo hydrostatic pressure testing every five years.
This requirement applies to motorsports in Australia, regardless of whether FIA / ASN Racing Standards or Regulations are in effect.
Before getting recharged, any older cylinders must be verified to ensure the Gas Cylinder Test Stamp is up to date.
Example of an Australian Gas Cylinder Test Stamp
.
Neglecting to do so puts both the operator and the re-filler at risk of injury and potential legal consequences if an injury occurs.
High-Pressure Gas Cylinders
Our licensed gas cylinder testing station is equipped to assess high-pressure gas cylinders used in Motorsports.
These high-pressure gas cylinders facilitate the storage and transport of various gases, including carbon dioxide, nitrogen, nitrous oxide, and fire-fighting foams such as Cold Fire.
Importantly, these gas cylinders do not have a designated end-of-life date and are eligible for refilling throughout the Commonwealth of Australia.
While these cylinders are generally more costly, they can typically be refilled at local fire safety gas cylinder testing stations or by accredited fire safety technicians.
Racecar Gas Cylinder Testing & Refills Call us today at 1300 883 473 or email us at info@firesys.com.au

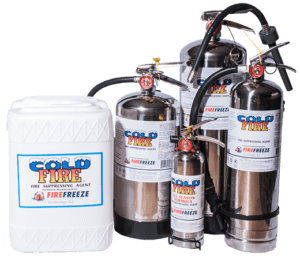

Cold Fire
Fire System Services stocks and refills Cold Fire, fire extinguisher & suppression cylinders.
Cold Fire™ is a multi-purpose environmentally friendly fire extinguishing agent that puts out the fire faster and safer, with less water and less property damage. Cold Fire cools 21 times more quickly than beats other foams hands-down!
Completely ‘green’ and non-toxic, Cold Fire puts out any Class A, B, D, or F Class fires, hydrocarbons or non-polar solvents, metals, tires, and asphalt.
It also suppresses vapors and helps to remediate spills.
Cold Fire is UL-listed and is used by fire departments and high-risk organisations worldwide due to its fantastic ability to quench nearly every fire. It eliminates the need to carry multiple foam types, like AFFF, AR-AFFF, and Class B foams.
Just one foam is needed – Cold Fire!
Our Services
The Company offers various services to Australia’s Motor Sports Racing Vehicle Community.
- Automatic & Manual Fire Extinguishing Systems Refills
- Carbon Dioxide Refills
- Cold Fire Refills
- Fire Bottle Hydrostatic Pressure Testing
- Fire Extinguisher Refills
- Foam Refills
- Hydrostatic Pressure Testing
- Nitrous Oxide Cylinder Testing
We can help if you have imported a fire or gas cylinder from overseas and must meet the guidelines so it can be refilled according to the Gas Cylinder Test Scheme.
