Eye Wash Station & Safety Shower

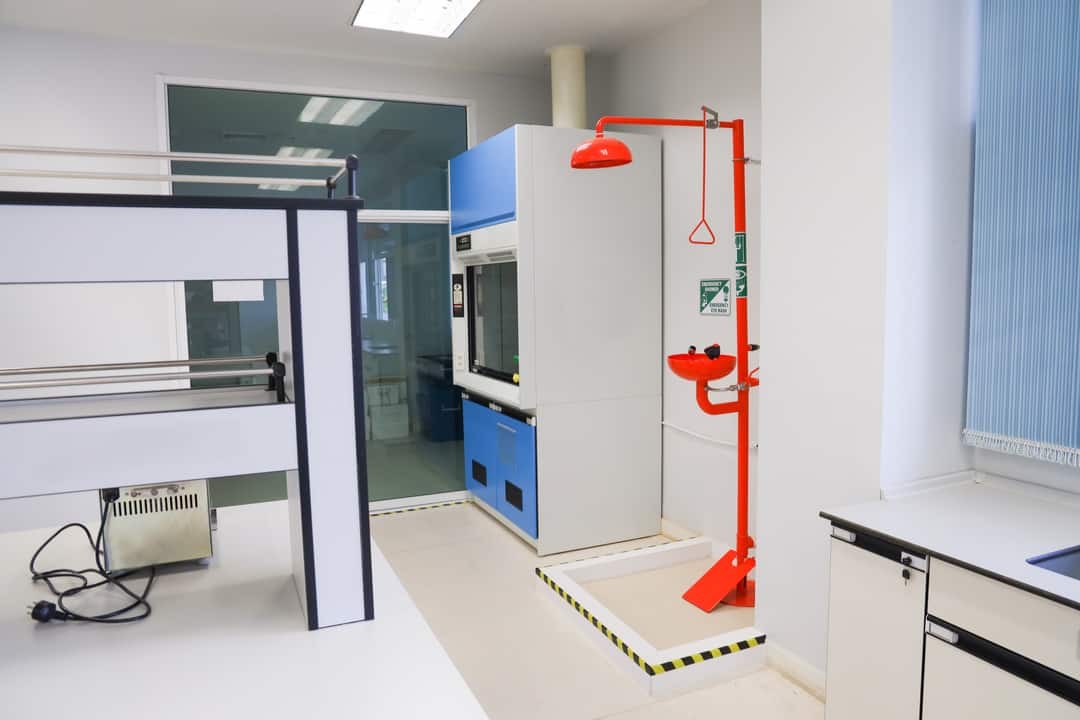

Combination Shower and Eyewash Stations

PRATT Combination Units provide the convenience of one unit incorporating both a deluge shower and with an eye or eye-face wash with one water supply connection required.

Available with or without bowl assembly for indoor or outdoor applications.

Also with or without treadle assembly for hand or hand/foot activation for eye washes.

All models comply with Australian Standards AS4775.

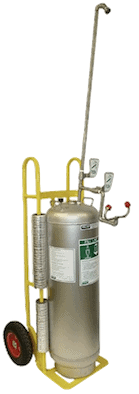

Portable Shower & Eye Wash Units

With PRATT’s Portable Shower and Eyewash Units, you can have a safe workplace no matter where you are.

These portable first aid water treatments are ideal for worksites without plumbing capabilities and are essential for fire and emergency teams, drivers carrying dangerous substances, and those working in remote places in mining, agriculture and construction.

Portable Units are easy to relocate, providing immediate shower and eye wash capability and reducing on the job, body chemical burns or contamination and eye injuries.

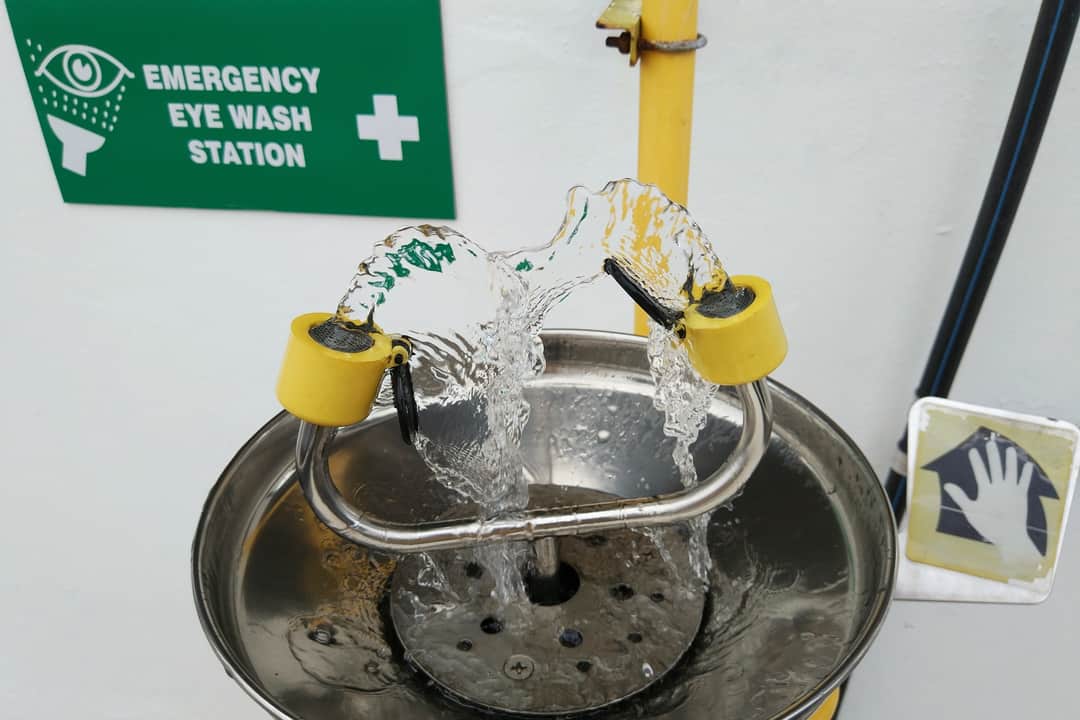

Fixed Pedestal Mounted Eye Wash Units

PRATT’s Fixed Pedestal Mounted Eyewash Units offer a greater fluid coverage to the face and eyes where initial treatment is critical and where severe irritant or corrosive chemicals are involved.

Available with or without bowl and optional foot operation.

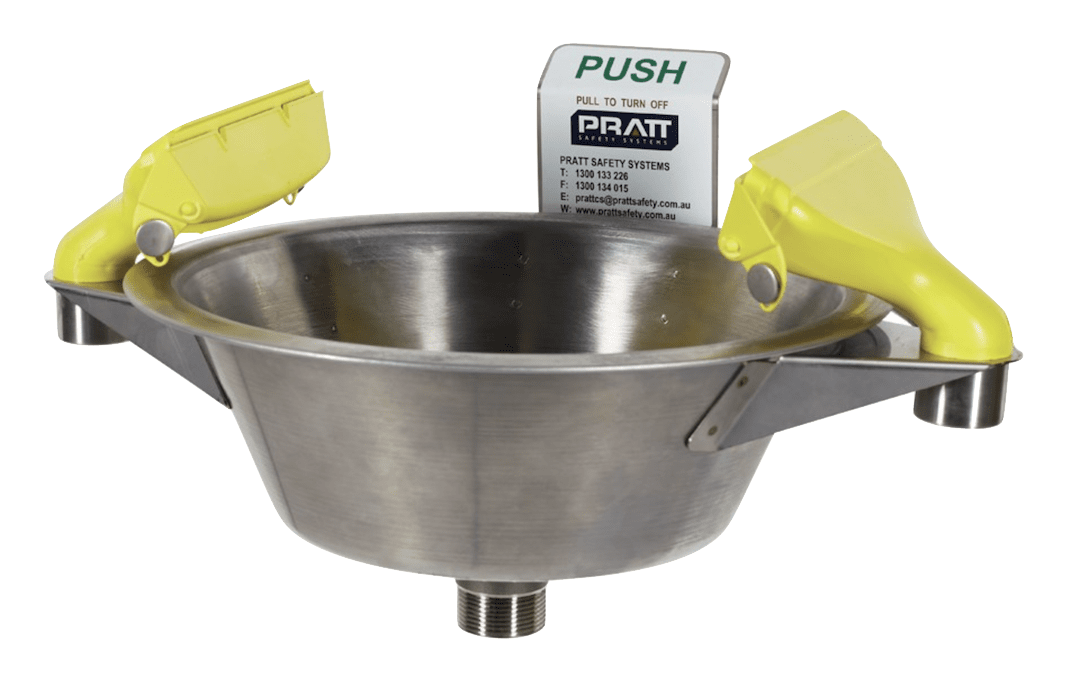

Fixed Wall Mounted Eye Wash Units

Pratt’s premium fixed wall mounted units provide immediate initial first aid treatment in the event of facial chemical contamination.

Available in both Eye/Face Wash and Eyewash configurations.

The Eye/Face feature a tripled aerated spray nozzle with the Eyewash a single aerated spray nozzle.

Both nozzles are interchangeable.

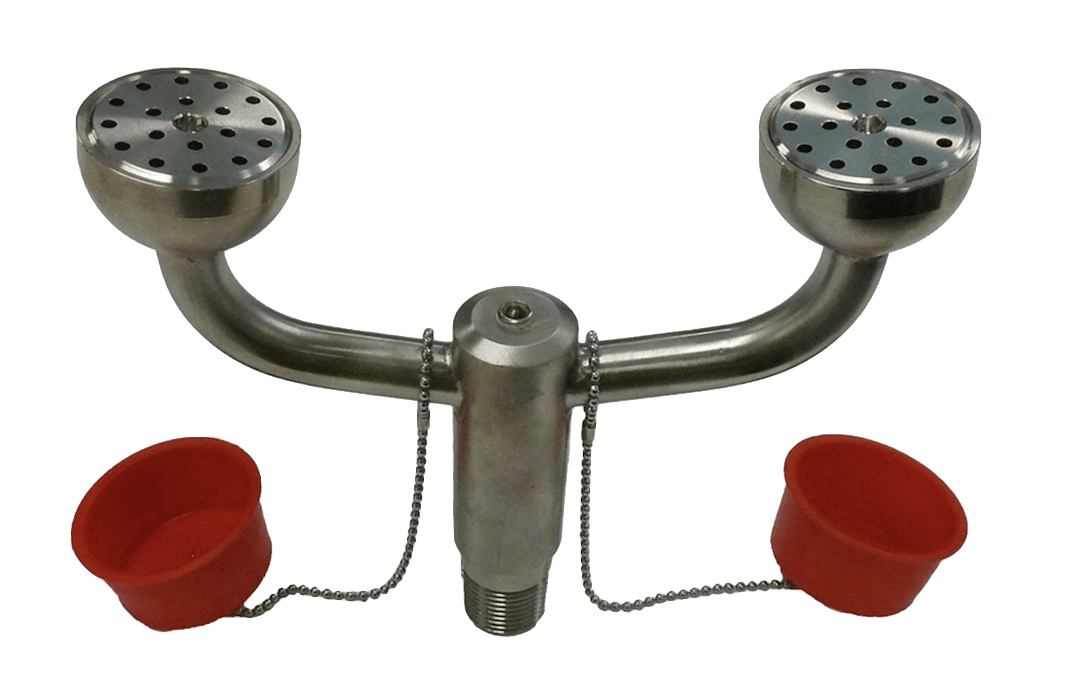

Laboratory Units

Even when working with small doses of dangerous substances, such as in a laboratory, a spill or splash could still cause a serious injury.

PRATT’s Laboratory Eye Washes provide laboratory practitioners swift and effective decontamination.

• Portable Eyewash Station (55L)
• A secure and cost effective solution for an eyewash station where plumbed water is not available.
• PRATT Safety Systems can provide you with strong and reliable equipment for any workplace requirements. You have a peace of mind knowing that you’re providing your employees with the best initial first aid treatment for chemical burns and injuries.
• Comes with 1 bottle of SE4764 Water Preservative
• Capacity: 55L
• Type: Portable
• Dimension (mm): 530L x 495W x 600 H
• Material of Construction: Polyethylene
• Australian Standard: AS4775 & ANSI Z358.1

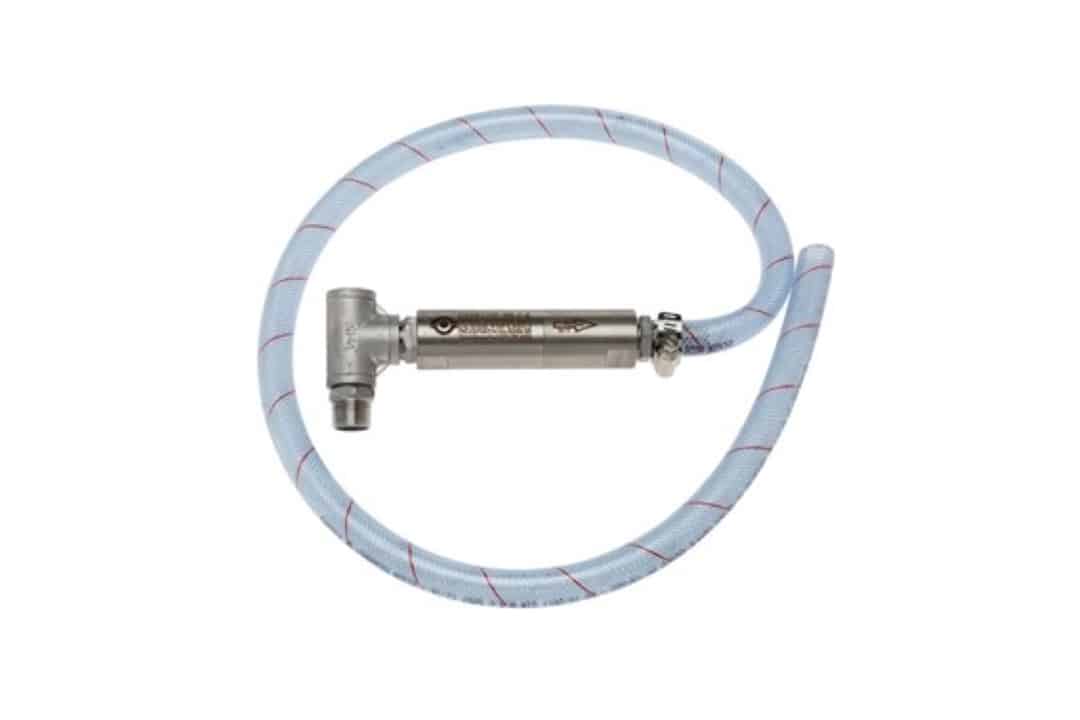

• Anti Scald Valve Only
• Where safety showers are located outdoors and exposed to the sun, the stored water, within the shower can reach excessive temperatures. AS4775 states that temperatures in excess of 38’C can be harmful to the eyes and can enhance chemical interaction with the eyes and skin.
• The Anti-Scald Valve is designed to automatically bleed off the stored hot water within the safety shower allowing cooler water from the supply line to enter and reduce the water temperature to safer levels.
• The Valve has an operating temperature range of: Opens at – 35’C. Closes at – 29.4’C
• The Valve is sensitive to water temperature only and unaffected by pressure changes.
• The Valve has a stainless steel body, fittings, spring and plug
• Type: Spare part
• Rec Min Connection: 15mm
• Material of Construction: Stainless Steel
• Australian Standard: AS4775 * 2

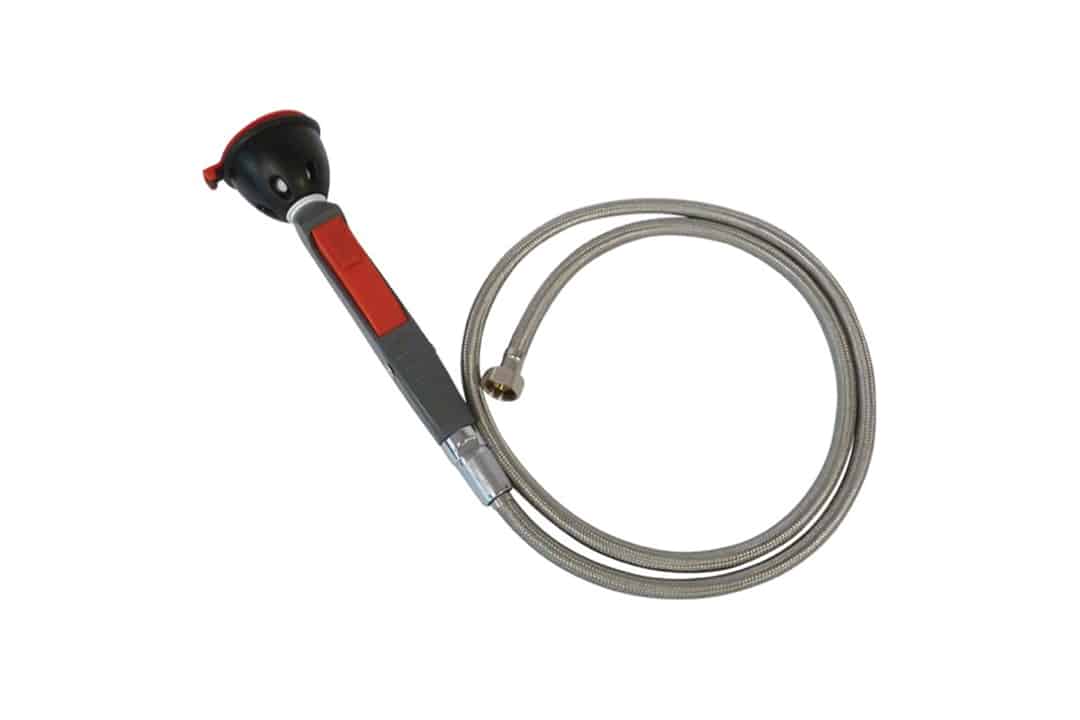

• When working with small doses of dangerous substances, a spill or splash could still cause a serious injury. The handheld eye wash provides you with swift and effect decontamination for your eyes and body.
• Non-aerated spray nozzle (SOFTSTREAM)
• Chrome plated brass body
• Suitable for both wall and bench mounting.
• Dimension (mm): 15mm x 1500mm hose
• Rec Min Connection: 15mm
• Rec Min Supply: 10 LPM
• Eye Wash Flow Rate: 4 LPM
• Minimum Pressure: 210 kPa
• Material of Construction: Chromed brass & plastic
• Australian Standard: AS4775 * 1

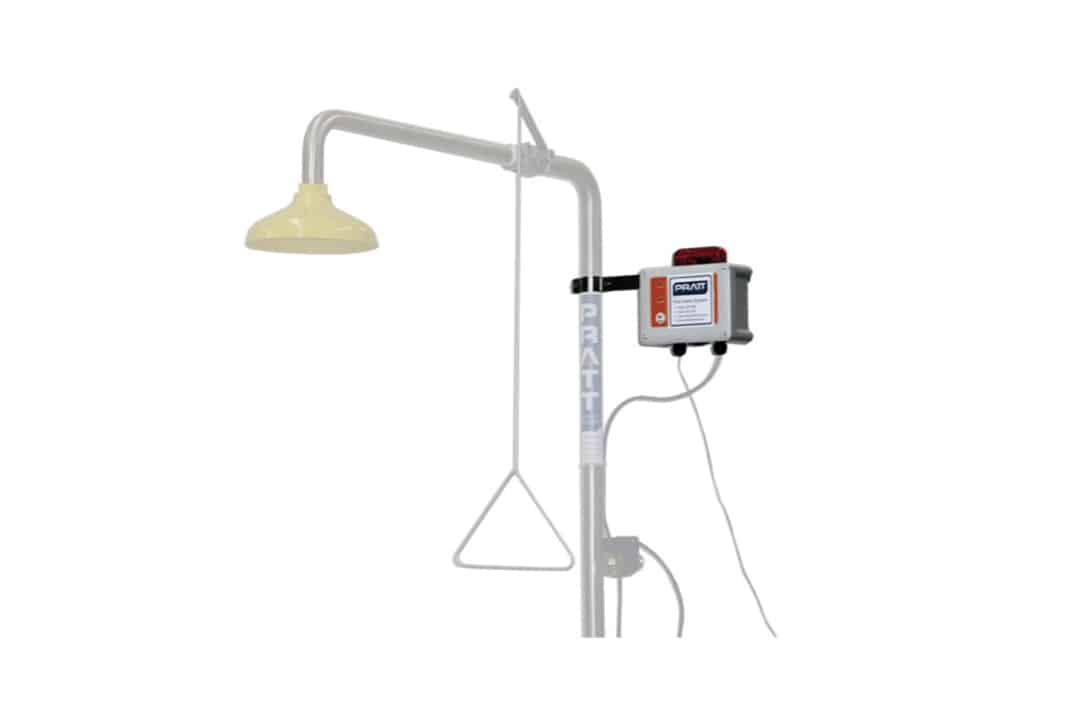

• Weatherproof Safety Shower Alarm Kit
• This weatherproof Safety Showers Alarm Kit is suitable for all PRATT Combination Showers and Eye Wash Stations.
• This alarm kit has been simplified with a new audible and visual enclosure which is easily mounted onto the shower stanchion using the bracket assembly included in the kit. The kit is suitable for both new and existing shower units with a 25 mm BSP M inlet connection.
• This is particularly important for remote areas for other staff to monitor the situation and send assistance as required.
• Weatherproof design. Alarm enclosure IP55 rated
• Low 12V power supply
• Easy installation
• All electrical components hard wire connected
• Can be connected to central monitoring station
• Inline flow switch operates when either Shower or Eye Wash is activated
• Audible alarm mute/un-mute button
• Australian Standard: AS4775 * 4

• Suits PRATT Shower & Eyewash Models PEM603, PEM607, PEM675, SE593A, SE603, SE607, SE612, SE616, SE620, SE675, SE679, SE685, SE689, SE612T316, SE607T316

• Suits PRATT Eyewash Models PEM490, PEM491, PEM492, PEM575, PS920, PS927, SE50P, SE400, SE415, SE420, SE475, SE480, SE505, SE515, SE545, SE546, SE575, SE590A, SE591A, SE592A

• Suits PRATT Shower Models SE220, SE227, SE253

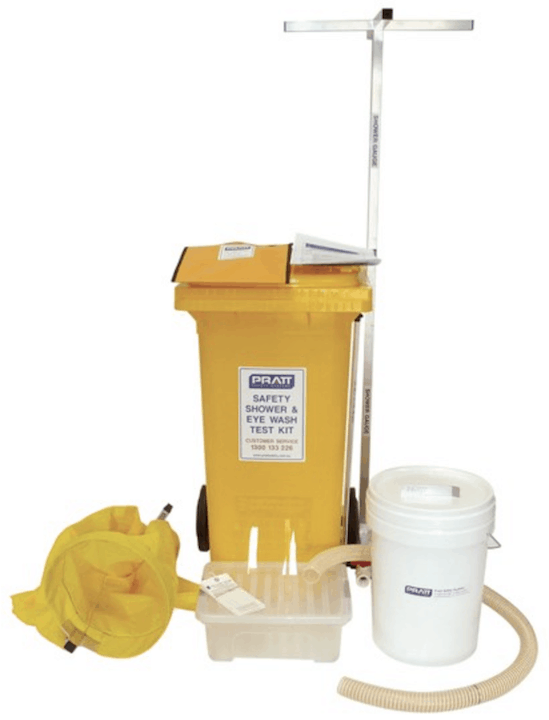

• Complete Shower & Eye Wash Test Kit comprises of the following items:
• 20L Yellow plastic Shower Test Bin which has been fitted with a clear plastic sight gauge and capacity indication for every 5 LT. Also included is a drainage valve. (This enables the testing of flow rates or weekly flushing for the safety shower when used in conjunction with the Shower Test Soc
• Shower Test Sock featuring soft nylon sock material and aluminium frame and handle. (Used in conjunction with the Shower Test Bin for either weekly flushing or annual flow test).
• Shower Pattern Test Frame which is a floor mounted stand made of collapsible aluminium tubing. This measures for the correct flushing fluid pattern of the safety shower.
• The Shower Test Sock can also be mounted to this stand, to provide hands free flushing or testing of the safety shower when used in conjunction with the Shower Test Bin.
• Clear plastic Eyewash Test Pattern Gauge with engraved markings and instructions. This measures the correct flushing fluid pattern of the eye wash equipment.
• Laminated master copy of the PRATT Safety Shower and Eyewash Check List. Includes recommended weekly check list on one side and annual check list on the other side. Use the master check list to make further copies for recording test results for all emergency safety shower and eyewash equipment.
• PVC Document Holder with zip to store the Check Lists and Eyewash Test Gauge.
• Eyewash Aerator Removal Key. Made of stainless steel and has been especially designed to enable the removal of the Eyewash Aerator retaining cap.
• Packet of ten Safety Shower and Eyewash Test Tags. Part No. SETESTTAG – new waterproof  material. Use waterproof marker pen to record details. To be attached to the emergency equipment to show record of testing dates.
• 20 lt Plastic Bucket with lid to use as alternative receptacle for shower testing in conjunction with Shower Test Sock.
• 10 lt Plastic Tray with lid to use as low profile receptacle for flushing and testing of Safety Eyewash.
• 1.5m length of 38mm ID Flexible Plastic Hose for draining of eyewash into plastic tray.
• All of the above components of the Test Kit can be stored within the Test Bin ready for the next programmed flushing or testing.
• **TEST SOCK NOT SOLD INDIVIDUALLY**
• Australian Standard: AS4775 * 3

• To be attached to the emergency equipment to show record of testing dates.
• Waterproof  material
• Use waterproof marker pen to record details
• Packet of ten Safety Shower and Eyewash Test Tags

12v DC Alarm to advise that the shower eyewash station is in use.
