As accredited service providers, the National Hydro Cylinder Testing Services technicians are here to perform your Automotive Gas Cylinder Testing in Adelaide.
We operate and manage an approved gas cylinder test station, number 720.
We are focusing and specialising in all aspects of Automotive Gas Cylinder Tests.
With more than 35 years of experience, we can help you with your needs for LPG and Hydrogen automotive gas cylinder requirements.
When you work with us, you can be assured you will receive high-quality service and care from our friendly technicians, who assist you with all your needs to help you with your Automotive Gas Cylinder Requirements in Adelaide.
Our workshop capabilities allow us to test and refill Automotive Gas Cylinders ranging from low-pressure LPG to high-pressure composite hydrogen gas cylinders.

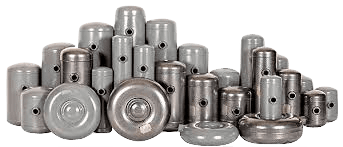

There are various gas cylinders available for use in automotive vehicles.
The gas cylinder test cycle is on a (10) ten-yearly basis.
Ten yearly tests consist of replacing the Safety Pressure Realise Valve & all O Rings and any defective parts.
LPG gas cylinders for motor vehicles are available in two valve configuration types, 4 Flange and multivalve.
The gas cylinders come in cylindrical or round and are supplied in various gas capacity sizes.
4 Flange
Four flange valves are built so that each component works separately.
When ten yearly testings are required, only O rings and the Pressure Realise valve are usually changed.
Multivalve
Multivalves are built so all the components are designed into one valve.
Usually, when ten yearly tests are required, the whole valve assembly must be changed.
The gas cylinder test cycle is on a (05) five-yearly basis.
Hydrogen gas cylinders for motor vehicles are high-pressure gas cylinders. The gas cylinder is a composite type to withstand high-pressure gases.
Hydrogen gas cylinders do have a life span depending on the cylinder manufacture, commonly found in (15) fifteen years (EOL) End of Life or (30) thirty years (EOL) End of Life.
The LPG gas cylinder test cycle is on a (10) ten-yearly basis.

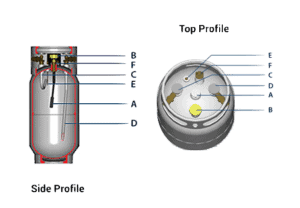

LPG gas cylinders for Forklifts are available in one type of valve configuration.
Ten yearly tests consist of replacing (F) Safety Pressure Realise Valve & all O Rings and any defective parts.
A. Float Gauge
B. Liquid Fill Valve
C. Vapor withdrawal tube/valve
D. Liquid withdrawal tube/valve
E. Fixed Liquid Level
F. Safety Pressure Relief Valve
The Company offers various Automotive Gas Cylinder testing services in Adelaide, South Australia.
If you are requiring an LPG mechanic to service the LPG system on your vehicle.
