Never worry about your
Fire Extinguishers Again

Experience automated wireless remote
fire extinguisher monitoring with guaranteed inspections.

PFEI Fire Extinguisher
Remote Monitoring Systems

Fire System Services and BCA Technology have formed a Joint Venture to develop the innovative PFEI Fire Extinguisher Remote Monitoring Systems.

This wireless monitoring system is designed to remotely monitor various types of fire extinguishers, integrating advanced technology for automated monitoring and alarms.

It is capable of monitoring crucial parameters such as:

  • fire extinguisher pressure
  • physical movement
  • pin-pull tampering

Ensuring timely notifications and alerts for potential hazards. By implementing this advanced system, users can benefit from 24/7 alert notifications, resulting in cost savings, reduced disruptions, and improved efficiency.

Trust this innovative solution to provide peace of mind and the highest level of fire protection for your facility.

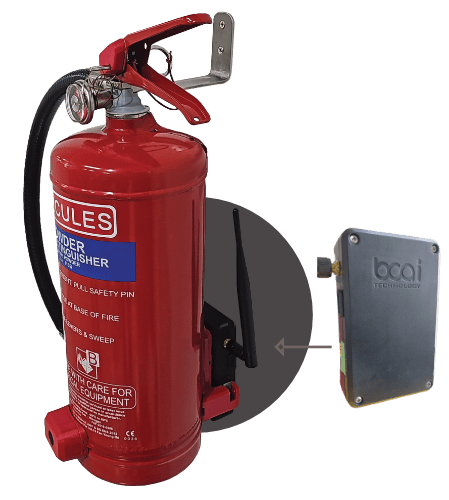

PFEI Fire Extinguisher Monitoring Unit

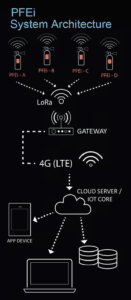

LoRaWAN Modules have long range radio connectivity to LoRaWAN Gateway.

PFEI Promotional Material

Demonstration Video of the PFEI Technology

The Benefits

  • Electronic monitoring, compliant with NFPA-10
  • Reduction of on-site manual maintenance frequency, and the validation of on-site maintenance
  • Real time monitoring and notification / messaging to FireM
  • Theft / Tamper notification and obstruction and
  • Pull-pin-monitoring

Wireless Portable Monitoring Unit

Workshop or on-site assembly

  • Daily Heartbeat,
  • Simply retro-fitted to existing systems
  • Pressure gauge wired to monitoring unit
  • Communication Failure Notification
  • 5 year Battery Life

Real Time Alert Mapping (FireM opton only)

  • Reduces risks, uncertainfies, and unwanted false alarms of a fire outbreak
  • Reduces costs of maintenance and servicing
  • Reduces unnecessary injuries and potential death
  • Improves security and fire safety of occupants
  • Improves productivity of the people within the compound
  • Improved accuracy of fire alarm

Testing & Compliance

PFEI is tested and complies to SS 578: 2019 A1 – Code of practice for the use and maintenance of portable fire extinguishers.
Singapore Test Lab Pte Ltd: Test Report 2423208-OWD, 21 June 2024.
Please use inquiry below for further information.

How this Works

Trigger Events

  • Extinguisher Obstruction – If an fire extinguisher is obstructed a notification will be sent on a daily heartbeat.
  • Battery Voltage Low – Issues a fault notification with low voltage issues.
  • Extinguisher Moved – Fault notification when disengaged. Normal location event when reinstated to normal.
  • Pressure Loss – Fault notification when fire extinguisher loses pressure beyond factory set threshold.
  • Pull Pin / Anti Tamper – Issues of pre-alarm event if fire extinguisher is armed (pull pin  released) and ready for discharged.

PFEI Fire Extinguisher Monitoring Introduction
About Us

Never worry about your
Fire Extinguishers Again

Experience automated wireless remote
fire extinguisher monitoring with guaranteed inspections.

PFEI Fire Extinguisher
Remote Monitoring Systems

Fire System Services and BCA Technology have formed a Joint Venture to develop the innovative PFEI Fire Extinguisher Remote Monitoring Systems.

This wireless monitoring system is designed to remotely monitor various types of fire extinguishers, integrating advanced technology for automated monitoring and alarms.

It is capable of monitoring crucial parameters such as:

  • fire extinguisher pressure
  • physical movement
  • pin-pull tampering

Ensuring timely notifications and alerts for potential hazards. By implementing this advanced system, users can benefit from 24/7 alert notifications, resulting in cost savings, reduced disruptions, and improved efficiency.

Trust this innovative solution to provide peace of mind and the highest level of fire protection for your facility.

PFEI Fire Extinguisher Monitoring Unit

LoRaWAN Modules have long range radio connectivity to LoRaWAN Gateway.

PFEI Promotional Material

Demonstration Video of the PFEI Technology

The Benefits

  • Electronic monitoring, compliant with NFPA-10
  • Reduction of on-site manual maintenance frequency, and the validation of on-site maintenance
  • Real time monitoring and notification / messaging to FireM
  • Theft / Tamper notification and obstruction and
  • Pull-pin-monitoring

Wireless Portable Monitoring Unit

Workshop or on-site assembly

  • Daily Heartbeat,
  • Simply retro-fitted to existing systems
  • Pressure gauge wired to monitoring unit
  • Communication Failure Notification
  • 5 year Battery Life

Real Time Alert Mapping (FireM opton only)

  • Reduces risks, uncertainfies, and unwanted false alarms of a fire outbreak
  • Reduces costs of maintenance and servicing
  • Reduces unnecessary injuries and potential death
  • Improves security and fire safety of occupants
  • Improves productivity of the people within the compound
  • Improved accuracy of fire alarm

Testing & Compliance

PFEI is tested and complies to SS 578: 2019 A1 – Code of practice for the use and maintenance of portable fire extinguishers.
Singapore Test Lab Pte Ltd: Test Report 2423208-OWD, 21 June 2024.
Please use inquiry below for further information.

How this Works

Trigger Events

  • Extinguisher Obstruction – If an fire extinguisher is obstructed a notification will be sent on a daily heartbeat.
  • Battery Voltage Low – Issues a fault notification with low voltage issues.
  • Extinguisher Moved – Fault notification when disengaged. Normal location event when reinstated to normal.
  • Pressure Loss – Fault notification when fire extinguisher loses pressure beyond factory set threshold.
  • Pull Pin / Anti Tamper – Issues of pre-alarm event if fire extinguisher is armed (pull pin  released) and ready for discharged.
