Fire Hose Reels

Fire Hose Reel

Introduction

Fire System Services carries a wide range of firefighting and non-standard fire hose reels, built to exceed the strict requirements of Australian Standard AS/NZS 1221. They’re robust, reliable and easy to use and maintain – with lengths of 36m to 50m hose stocked and available for dispatch.

Our heavy duty Australian made HOSE REEL,  Product Code HR500.

The fire hose reels have roto moulded polyethylene drums, made with stainless steel internal parts such as bearings and swivel mount.

They can be fixed to the wall or floor using a stainless-steel mounting bracket. Supplied with a 19mm or 25mm hose outlet. Hose capacity may vary based on hose diameter, length and width of reel. Double and single sided cradles available in both Galvanized and Stainless Steel. Back pipes and trolleys and other accessories are available.

  • Roto moulded polyethylene drum
  • Sealed bearings and stainless steel internal and quad rings
  • Can be fixed to the wall or floor using a stainless-steel mounting brackets.

If it’s after-sales service, ease of supply, quality and value for money you’re looking for – choose us as your one point of contact for everything you need – from hose accessories to spare parts.

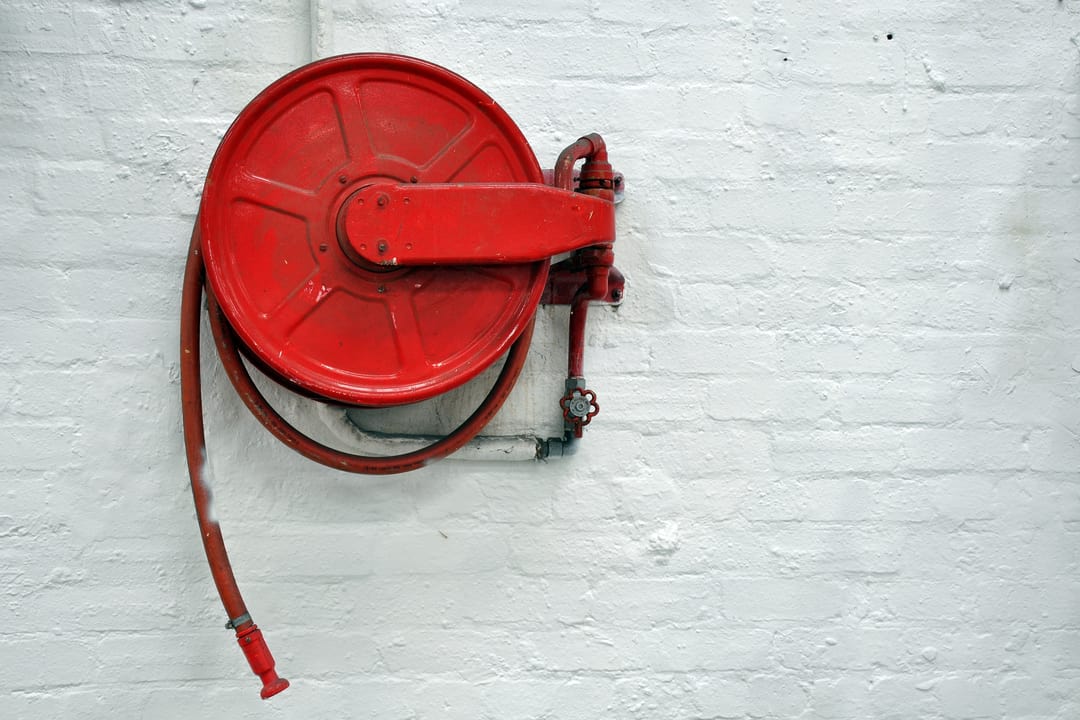

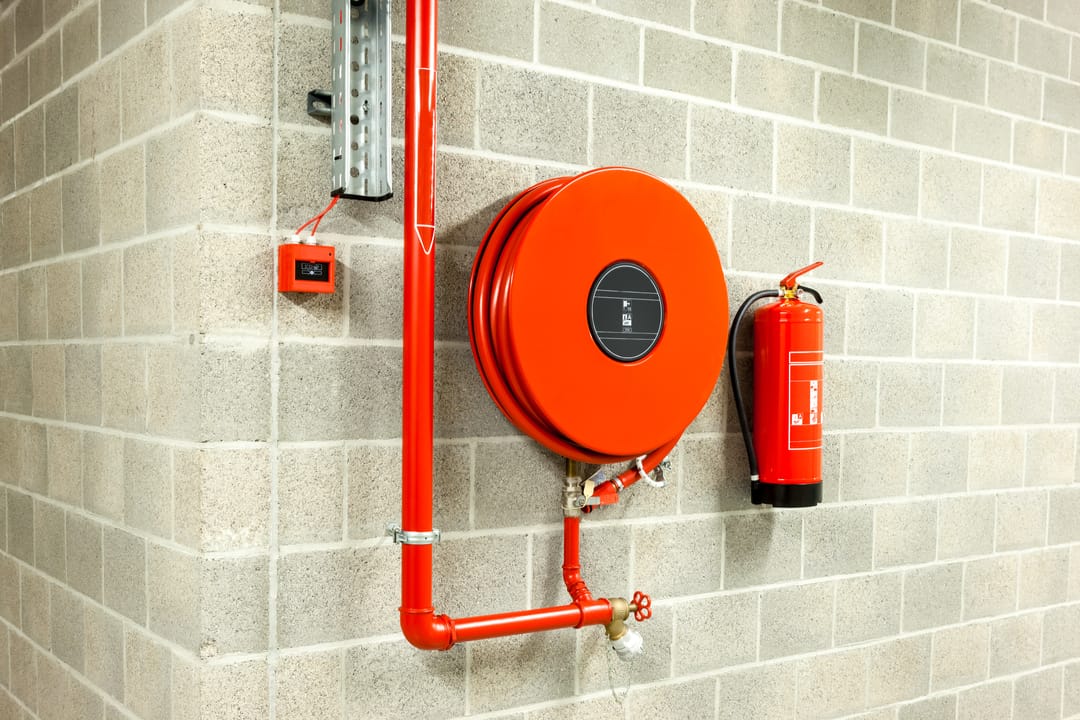

Fire Hose Reel Wall Mounted

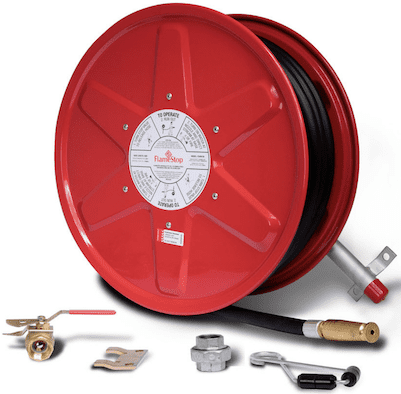

Fire Hose Reels for fire fighting

Fire Hose Reel

Fire Hose Reel

  • Approvals : AS/NZS 1221:1997
  • Back Plate to Wall : 50mm
  • Ball Valve Assembly Construction : Brass
  • Ball Valve Assembly Finish : Zinc Coated
  • Box Quantity : 1
  • Dimensions : W540 x D220 x H540mm
  • Front and Back Plate Construction : Steel
  • Front and Back Plate Finish : Signal Red
  • Gasket Construction : Rubber
  • Gross Mass : 22kg (approx)
  • Guide Arm Construction : Swivel
  • Guide Arm Finish : Zinc Plated
  • Inlet Pipe / Union Construction : Galvanised
  • Maximum Working Pressure : 1350kPa
  • Minimum Inlet Pressure : 220kPa
  • Model Number : FSHRV36
  • Mounting Plate Construction : Steel
  • Mounting Plate Finish : Signal Red
  • Nozzle Construction : Twist Action Brass
  • Pallet Quantity : 20
  • Pipe Construction : Galvanised
  • Single Units : Yes
  • STD Hose Length & Diameter : 36m x 19mm diameter
  • Support Assembly Construction : Mild Steel
  • Support Assembly Finish : Zinc Plated
  • Valve Stem : Galvanised
  • Warranty : 1 year*
Product Information

Our fixed Fire Hose Reel comes with all parts required: 25mm ball valve (including nozzle locking device), hose guide, union (HREEL36-FFU) and wall bracket.

Ease of use and heavy duty parts make this Fire Hose Reel suited to almost any application. Our fixed Fire Hose Reel comes with all parts required: 25mm Ball Valve (including nozzle locking device), Hose Guide and Wall Bracket.

  • *1 year warranty from date of delivery (warranty covers cost of hose reel only)
  • Easy to operate and maintain
  • Meets or exceeds requirements of Australian Standard AS1221

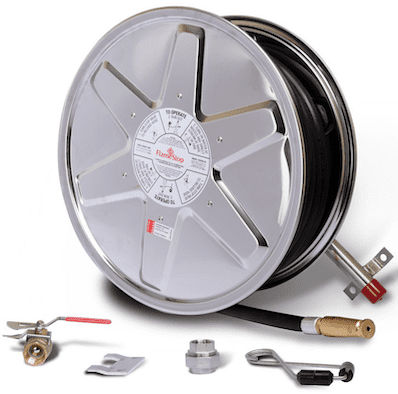

Stainless Steel Fire Hose Reels for fire fighting

FHR Stainless Steel

Fire Hose Reel Stainless Steel

  • Approvals : AS/NZS 1221:1997
  • Back Plate to Wall : 50mm
  • Ball Valve Assembly Construction : Brass, with SS Handle
  • Ball Valve Assembly Finish : Zinc Coated
  • Box Quantity : 1
  • Dimensions : W550 x D220 x H550mm
  • Front and Back Plate Construction : SUS304 Stainless Steel
  • Gasket Construction : Rubber
  • Gross Mass : 22kg (approx)
  • Guide Arm Construction : SUS304 Stainless Steel
  • Inlet Pipe / Union Construction : SUS304 Stainless Steel
  • Maximum Working Pressure : 1350kPa
  • Minimum Inlet Pressure : 220kPa
  • Model Number : FSHR36SS
  • Mounting Plate Construction : SUS304 Stainless Steel
  • Nozzle Construction : Twist Action Brass
  • Pallet Quantity : 20
  • Pipe Construction : SUS304 Stainless Steel
  • Single Units : Yes
  • STD Hose Length & Diameter : 36m x 19mm diameter
  • Support Assembly Construction : SUS304 Stainless Steel
  • Valve Stem : Stainless Steel
  • Warranty : 1 year*
Product Information

Our fixed Fire Hose Reel comes with all parts required: 25mm ball valve (including nozzle locking device), hose guide, union (HREEL36-FFU) and wall bracket.

Ease of use and heavy duty parts make this Fire Hose Reel suited to almost any application. Our fixed Fire Hose Reel comes with all parts required: 25mm Ball Valve (including nozzle locking device), Hose Guide and Wall Bracket.

  • *1 year warranty from date of delivery (warranty covers cost of hose reel only)
  • Easy to operate and maintain
  • Meets or exceeds requirements of Australian Standard AS1221

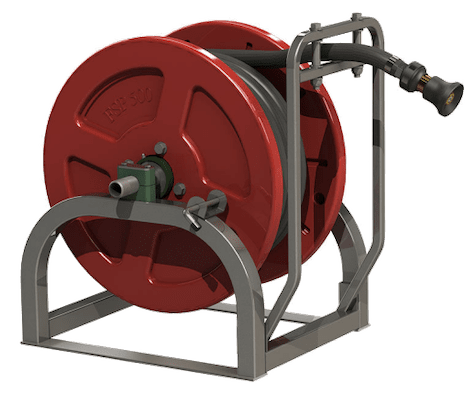

Heavy Duty Fire Hose Reels for fire fighting

Heavy Duty Fire Hose Reel

Heavy Duty Fire Hose Reel

500 HOSE REEL Our fire hose reels have roto molded polyethylene drums, made with stainless steel internal parts such as bearings and swivel mount.

They can be fixed to the wall or floor using a stainless steel mounting bracket. Supplied with a 19mm or 25mm hose outlet.

Hose capacity may vary based on hose diameter, length and width of reel.

Double and single sided cradles available in both Galvanized and Stainless Steel. Back pipes and trolleys and other accessories are available.

  • Roto-molded polyethylene drum
  • Sealed bearings and stainless steel internal and quad rings
  • Can be fixed to the wall or floor using a stainless steel mounting bracket
  • 19mm or 25mm Hose Outlet

fire extinguisher testing TDS Product Info Fire Hose Reel

Fire Hose Reels foam generator for fighting fires

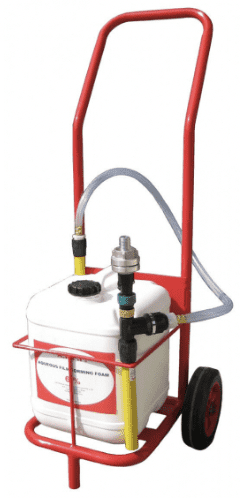

Fire Hose Reel Foam Station

Fire Hose Reel Foam Station Kit

The BFM & BMFA hose reel foam nozzle is a simple foam branchpipe with foam pick up capability.

Available in 3% or 6% proportioning, with 6% being standard.

The BFM & BFMA is designed for use with AFFF and 3F Flurone Free fire fighting foams plus other low expansion AFFF type fire fighting foams.

The BFM & BFMA is well suited for use with Class A or bush fire foams but special proportioning rates are required.

The BFM & BMFA nozzles can also be used with Alcohol Resistant AFFF such but this must be advised when purchasing. In addition you can replace the BFM & BFMA foam branch with the fire hose reel nozzle.

This allows you to switch between the applications of using water or foam via the Schwartz couplings.

  • BFM – Plastic Fabrication (Yellow Branch Pipe)
  • BFMA – Anodised Aluminium Fabrication (Blue Branch Pipe)

fire extinguisher testingTDS BFM 060820

fire extinguisher testingTDS BFMA 290720

Description

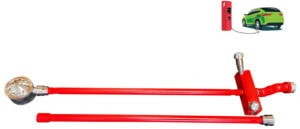

The EVFS system is a fire-fighting device specifically designed for electric vehicles. It comprises a water mist nozzle, Part No. EVFN 01 and an extension pipe, Part No. EVNP 01, both made of stainless steel. The EVFN 01 nozzle is designed to spray water and water mist at low pressures to help cool and extinguish the battery pack under the vehicle chassis. The nozzle measures 79.5mm tall and has a wide spray angle, making it possible to position under most electric vehicle models, with good water spray and water mist coverage.

The EVNP 01 extension pipe allows the EVFN 01 nozzle to be quickly placed under the car chassis. The extension pipe is 1.9 meters long and gives emergency response officers a safe distance to operate. The pipe has two nozzles that spray water mist to cool and extinguish the entry location, hence reducing fire from spreading to nearby vehicles, and protecting rescuers from fire and heat.

According to the Emergency Response Guides from EV manufacturers and the NFPA guidelines, firefighters must apply large amounts of water directly to the battery to stop thermal runaway and extinguish the fire.

Product Specifications

Model Number: EVFS

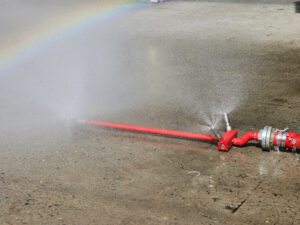

Full Vehicle and Battery Pack Coverage
Effective Spray Area 5.5m x 1.55m at 150mm ground clearance.

Two additional water mist nozzles cover the sides and top of the vehicle up to 1.8m high to help protect emergency responders.

Fast Cooling Effect
combining spray and water misting discharge methods helps absorb heat quickly and efficiently.

Absorb Toxic Gases
The fine water mist can absorb toxic gases produced from the battery chemical reaction.

Multi-Directional Use
with four deployment directions, induced from any side of the vehicle, wide–area coverage to the chassis and side of the vehicle is achievable.

Compact Design
with a compact 79.5mm nozzle height from the ground, it is suitable to slide under all-electric vehicles currently available on the market.

Robust and Durable Design
the entire system is made from 304-grade stainless steel with high-quality surface treatment for strength and durability.

Safe Operating Distance
Providing up to 2.8m safety distance (standard system + one extension pipe) from the burning vehicle coupled with water spray protection, to protect emergency responders from the heat and flames of the burning vehicle.

Quick & Easy Set Up
Self-locking Connections between all main parts for quick setup, deployment, and pack-down.

Insulating Coating
Protects the operator(s) from any potential electric shock risks.

Easy maintenance
a pre-fitted internal filter reduces the chances of blocking nozzles with foreign objects and allows for smooth operation and simple maintenance.

F-500EA Solution Suitable
compatible with F-500 Encapsulator Agent which has been proven to enhance water’s cooling effect by 4-6 times, making this combination incredibly effective on challenging EV Fires.
